Rex Custom Traverse Rods
How it Works
Choose the correct width type for your window.
First type for a normal window and fill in the width of the coverage area.
For the corner window, select the second type and fill in the coverage area of 2 parts: X and Y (from left to right).
For the bay window, select the third type and fill in the coverage area of 3 parts: X, Y, and Z(from left to right).
Please kindly know that the middle brackets will not let the rings slide. But the runner can easily glide.
For a detailed step-by-step guide, visit our REX Curtain Rod Installation Blog.
Fast & Free Air Shipping
Smaller standard items will be shipped together with your custom-made products.
Larger standard items, such as curtain rods, will ship separately.
Standard items ship within 3 business days from our warehouse.
For more details, please see our Shipping Policy.
Friendly Return Policy
Returns are generally only accepted if there are quality issues.
Can be returned in their original packaging.
Swatch/Sample Booklets: Not eligible for returns.
View Return Policy
Rex Custom Traverse Rods
Max Weight Capacity: 22-132lbs(per brackets bear 22 lbs)
Material: Aluminum
Package Including
Mounting accessories (brackets*N, sets of screws(expansion) *N, connector *N)
Rods & Runners & Ends (Rod exceeding 82" will be spliced for shipping.)
Instruction *1
Tips：
*The screws are M4/M5 size, so use a slightly smaller drill bit to make the pilot holes.
-
For hollow walls (metal, wood, or drywall), use screws.
-
For solid walls (concrete, brick), use expansion screws.
5 Color Options
Black
White
Gold (Close to Brass)
Nickel
Antique Bronze
*The accessories like brackets, ends, and rings will be in the same color.
However the grommet color of the drapes does not match.
Two Ways for Installation
Ceiling installation(not fit REX-rings)
Wall installation
Customized Rod Width
The rod width is custom-sized to fit your window. Normally, the rod should extend the window 2-15 in (as you prefer) and keep 1 in far away from the wall at least.
Please allow a tolerance of 1 - 2 cm in width on account of manual cutting.
Flexible Use
For normal windows, 70 in has 2 brackets, 71 - 106 in has 3 brackets, 107 - 141 in has 4 brackets, and 142 + in has 5 brackets. (Per bracket bear 22 lbs, you can decide the brackets' quantity according to the curtain weights).
If you're using rings, please note that the center bracket will block the rings from sliding past. This means:
-
3 brackets require 2 curtain panels
-
4 brackets require 3 curtain panels
-
5 brackets require 4 curtain panels
For corner windows, it has 4 brackets.
For bay windows, it has 6 brackets.
Flexible Runner

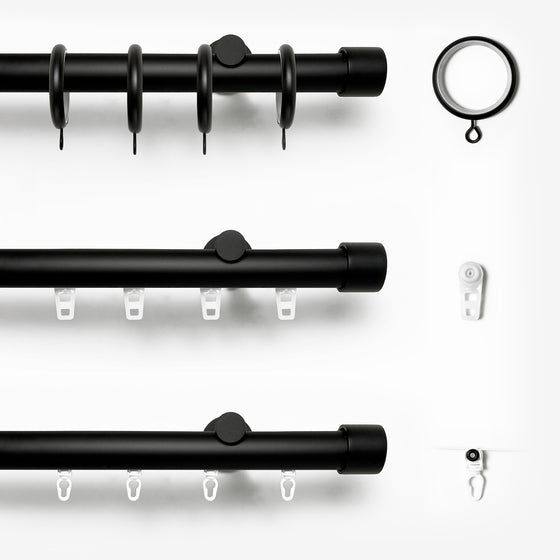

Offer 3 runner options, like REX-rings (per 4 in offer 1 ring), REX-pinch pleat runners (per 4 in offer 1 runner), and REX-ripple fold runners (same width as the rod, and runner space is 2.36 in).
Size Guide
Normal window: measure the window size and add 2-15 in(as you prefer) at both sides.
Corner windows: measure from the corner to the window and add 2-15 in(as you prefer) on both walls.
Bay windows: measure from the corner to the window, add 2-15 in(as you prefer) on both side walls, and measure the whole middle wall.
3 Year Warranty
Curtarra offers a 3-year warranty on all rod and rod accessories. Each rod is warranted to be free from defects in material and workmanship for 3 years from the date of order. If the product fails within this 3-year period we will replace it free of charge.
Return Policy
The rod width is customized according to your width, so it is not returnable due to the width not fitting. If you are not sure about the rod width, please start a LiveChat.
Easy Installation
Read the PDF to learn how to install the rex traverse rod.
For a complete walkthrough, visit our REX Curtain Rod Installation Blog.
View installation video:
Hear what others say
- IIvoryVerified BuyerReviewingRex Custom Traverse RodsI recommend this productRated 5 out of 5 stars2 weeks agoRex Custom Traverse Rods Provide Sturdy Support
Curtarra Rex custom traverse rods are of reliable quality. The material is strong and durable, capable of supporting heavy curtains without bending. Custom length fits my window perfectly, no gaps or overhang. Installation hardware is included and easy to assemble. The finish is smooth and resistant to scratches. Packaging was secure, with no damage during transit. A solid choice for those needing custom sized curtain rods with reliable performance.
- SSkyVerified BuyerReviewingRex Custom Traverse RodsI recommend this productRated 4 out of 5 stars1 month agoGreat!
The finish is sleek and matches my decor perfectly.
- AAimeeVerified BuyerReviewingRex Custom Traverse RodsI recommend this productRated 4 out of 5 stars1 month agoStrong And Sturdy Hardware
These rex custom traverse rods work great for my heavy drapes. The installation was simple for me. I am glad I chose this hardware from curtarra for my home project.
- NNoaVerified BuyerReviewingRex Custom Traverse RodsI recommend this productRated 5 out of 5 stars1 month agoSturdy and Discreet
The Rex rod does its job perfectly. It is strong and glides quietly. The finish matches my hardware well. A functional component that works as expected.
- MMarloweVerified BuyerReviewingRex Custom Traverse RodsI recommend this productRated 5 out of 5 stars1 month agoMade Hanging Curtains a Breeze
The right rod makes all the difference. This custom Rex rod was easy to install and feels so sturdy. Now my heavy Sabrina curtains open and close like a dream. Customer service helped me confirm measurements, which was great.
